Metal bar grating
The metal bar grating is a product made of steel welded into a grid (grid) pattern. Due to its wide range of applications, including ships, power plants, industrial plants and street drain covers, the grating has become a necessary product for the maintenance of life heavy infrastructure.
Children run around riding bicycles safely, students walk to school safely, and adults drive safely... Although these are ordinary activities without thinking in daily life, what makes them safe is the fence.
At Xingebin, we constantly challenge ourselves and constantly make gratings to provide more protection for places where people need to walk.
The material of the metal bar grating
The welded metal bar grating is generally made of carbon steel, and the surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The steel grating has the properties of ventilation, lighting, heat dissipation, anti-skid and explosion-proof.
Another is stainless steel grating, which is much more expensive than conventional galvanized steel grating. It is generally used in food factories, kitchen drainage, pharmaceutical factories and other areas with high anti-corrosion requirements
Structure of the metal bar grating
- Material saving: the grating is the most economical way to bear the same load. there are more space between the grid, the material of supporting structure can be reduced.
- Reduce investment: the structure of the grating, it can save materials, labor, construction period and cleaning and maintenance.
- Simple construction: fix the pre installed support with bolt clamp or welding, and one person can complete it.
- Save time: the product does not need to be reprocessed on site, and the installation is very fast.
- Durable: hot dip galvanized anti-corrosion treatment before delivery, strong impact resistance and heavy pressure resistance.
Application of the metal bar grating
Due to its wide range of applications, including ships, power plants, industrial plants and street drain covers, the grating has become a necessary product for the maintenance of life heavy infrastructure.
Hot dipped galvanized steel bar grating drawing
Hot dipped galvanized steel bar grating fastener
Specification of the welded serrated stell grating
| Product Name | steel grating,walkway steel grating,building materials steel bar grating,galvanized steel grid |
| Material Standard | Stainless steel, Low carbon steel, etc. |
| Bearing Bar (width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; |
| I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment | untreated(black), hot-dipped galvanized ,powder coated,painting or as per customers’ requirement. |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing | packed on the pallets,Other special package :according to customers' requirements. |
| Remarks: Other sizes also can be customized according to customers’ requirement. |
Hot dipped galvanized steel bar grating welding machine
Package of the Galvanized grating
Product Tags:
|
|

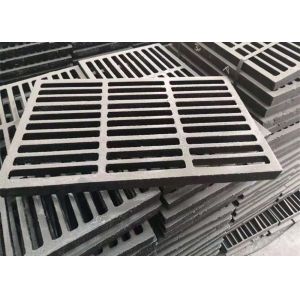

Metal Bar Grate , Stainless Steel Trench Drain Grate For Floor / Plate / Stair Images
|
